Technical information
| Diameters | 150mm | 200mm | 300mm | |||||
| Grade | Test、Reclaim | Test、Reclaim | Test、Reclaim | |||||
| Types | N、P | N、P | N、P | |||||
| Test | >625um | Test | >700um | Test | >760um | |||
| Test | @0.16um<30個 | Test | @0.08um<=40ea | Test | @0.08um<=60ea | |||
| Reclaim | >550um | Reclaim | >600um | Reclaim | >650um | |||
| Reclaim | @0.2um<30ea | Reclaim | @0.2um<=30ea | Reclaim | @0.16um<=30ea | |||
| Resistivity | 0 - 100ohm-cm | 0 - 100ohm-cm | 0 - 100ohm-cm | |||||
| TTV | <=15um | <=25um | <=10um | |||||
| Warpage | <=50um | <=50um | <=100um | |||||
| Matellic Contamination | <5E10 | <50E10 | <2.5E10 | |||||
Test Wafer：Standard Specification
<SEMI>
| 50mm | 75mm | 100mm | 125mm | 150mm | 200mm | 300mm | |
| Thickness(μm) | 280±25 | 380±25 | 525±25 | 325±25 | 675±25 | 725±25 | 775±25 |
| Bow(μm) | ≤38 | ≤40 | ≤40 | ≤40 | ≤40 | ≤60 | ≤65 |
| TTV(μm) | ≤15 | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 |
※Please consult with us for any customization.
🧿Dummy Interposer Wafer Specification
- Size: 4”.5”.6”.8” and 12”. Silicon wafer (new and recycled)
- Type：P/N type
- Front/Back side：Polished/Etched
- Particle：≧0.2um@≦30ea
- Resistivity: 1~100Ω·cm
application
- Mechanical testing
- test
- cutting
- Block control piece
- Grind
- interposer
🧿（Reclaimed Wafer） Processing flow
- Recycle used silicon wafer dummy wafers and baffles, and reprocess the surface of the processed silicon wafers
- For example: using chemical and mechanical treatments to peel off the oxide film photoresist metal layer on the surface.
- According to the customer's needs, we again undergo the same production process and strict quality control as when producing wafers, so that the recycled silicon wafer dummy wafer and barrier wafer can meet the thickness, cleanliness and flatness standards required by the customer.
application
- Mechanical testing
- test
- cutting
- Block control piece
- Grind
🧿Thin Film Silicon Wafer Coating
The following coated silicon wafer processing can be provided according to customer needs.
💡Processable film
- Nitride film SiON
- Oxide film SiO2
- Metal: AL and others
application
- Mechanical testing
- test
- cutting
- Block control piece
- Grind
🧿Interposer Spacer Wafer
- Size: 4".5".6".8" and 12” silicon wafer (new and recycled)）
- Type/Dopant：P/N type
- Front/Back side：Polished/Etched
- Provide different grades according to customer needs
application
- Mechanical testing
- test
- cutting
- Block control piece
- Grind
📦Package
- Coin Roll
- Wafer cassette
- Jar

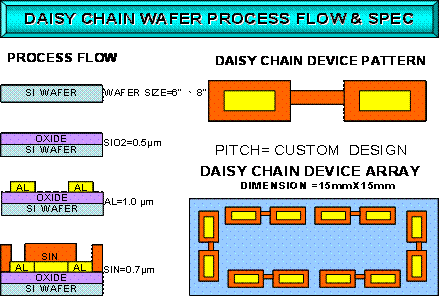

Daisy Chain Wafer
Description: 6" and 8"12" inch line test silicon wafers are available from 100um to 250um
Pitch application: Advanced corrugated line process for verification by packaging plants
